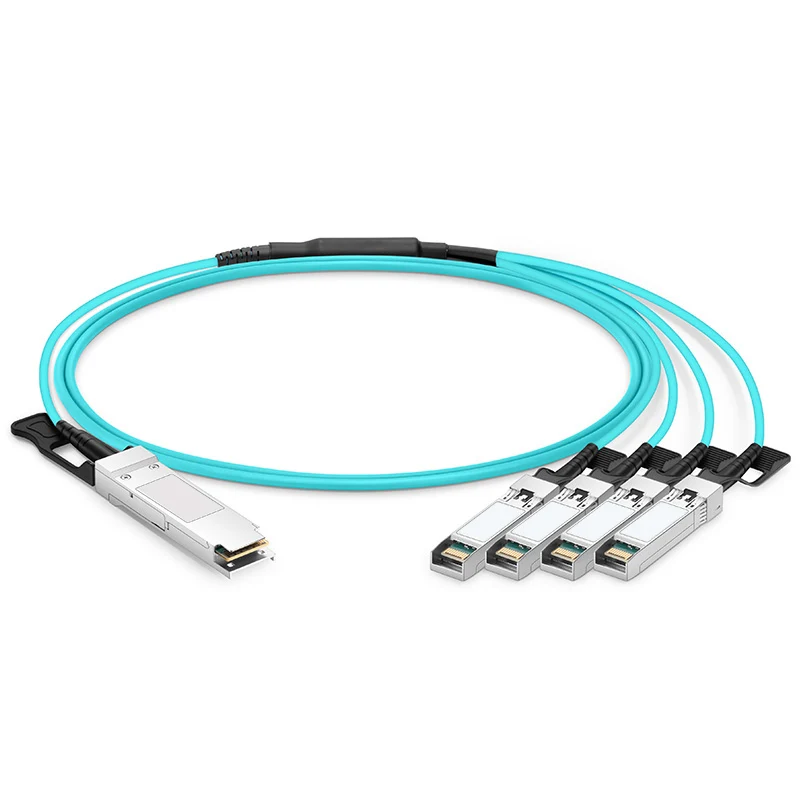

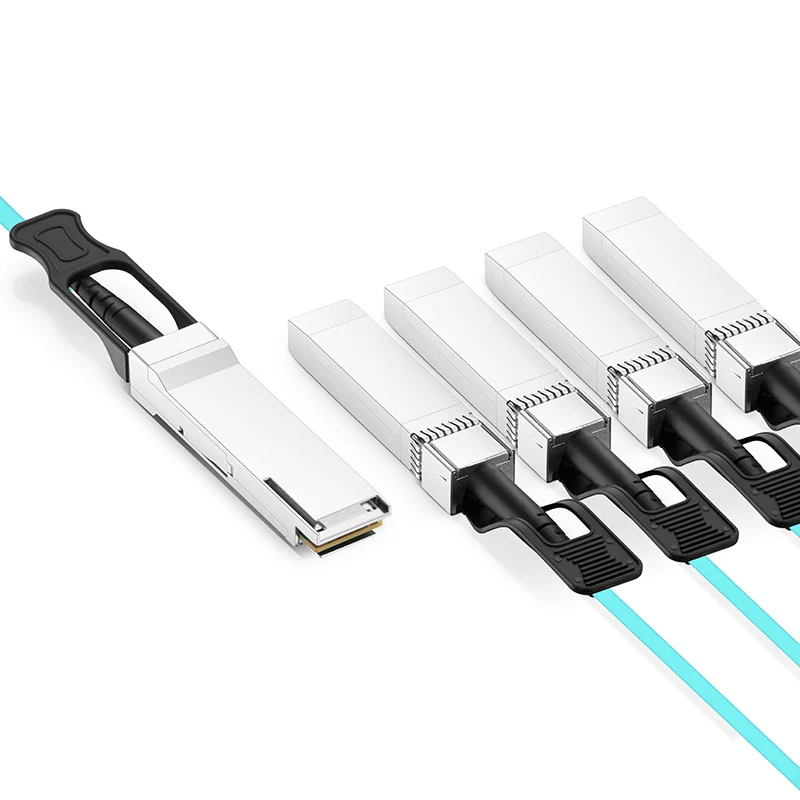

40G QSFP+ to 4×10G SFP+ Active Optical Cable (AOC), OM3, up to 30 m (98 ft), Custom up to 100 m (328 ft)

Overview

The NSComm 40G QSFP+ to 4×10G SFP+ Active Optical Cable (AOC) is designed for high-performance 40G to 10G breakout connections in data centers and enterprise networks.

Built with OM3 multimode fiber, it supports standard lengths up to 30 m (98 ft) and custom lengths up to 100 m (328 ft) for flexible deployment in top-of-rack (ToR) and middle-of-row (MoR) architectures.

This breakout AOC features a QSFP+ connector on one end and four SFP+ connectors on the other, enabling seamless 40G QSFP+ port connections to four individual 10G SFP+ ports.

It is fully hot-pluggable, supports Digital Optical Monitoring (DOM), and ensures low power consumption (typically ≤ 1.5 W per end).

Compliant with QSFP+ MSA and IEEE 802.3ba standards, the NS 40G breakout AOC delivers reliable signal integrity and EMI immunity, making it ideal for server-to-switch and switch-to-switch connectivity.

The cable is extensively tested for compatibility with Cisco, Huawei, Juniper, Arista, Dell, Netgear, Intel, HPE Aruba, Fortinet, and other leading vendors.

Compatible Brands

NSComm 40G QSFP+ to 4×10G SFP+ AOC works seamlessly with networking devices from:
Cisco, Huawei, Juniper, Arista, Dell, Netgear, Brocade, HPE Aruba, Extreme, and more.

Need confirmation for your switch model? [Contact Us Now] and our technical experts will assist.

Key Specifications

Specification	Details
Vendor Name	NSComm
Product Type	40G QSFP+ to 4×10G SFP+ Active Optical Cable (AOC)
Data Rate	40 Gbps (4×10 Gbps breakout)
Fiber Type	OM3 Multimode Fiber
Max Cable Distance	30 m (98 ft) standard; up to 100 m (328 ft) custom
Connector Type	1× QSFP+ to 4× SFP+
Monitoring Feature	Digital Optical Monitoring (DOM)
Power Consumption	Typically ≤ 1.5 W per end
Temperature Range	0 °C to 70 °C
Bend Radius	Minimum 30 mm
Standards Compliance	QSFP+ MSA, SFF-8436, IEEE 802.3ba, RoHS
Applications	40G-to-10G server uplinks, switch aggregation, breakout interconnects

Why Choose NSComm 40G Breakout AOC?

Flexible deployment: Standard lengths up to 30 m (98 ft); custom options up to 100 m (328 ft).
Seamless breakout connectivity: 40G QSFP+ port to 4×10G SFP+ ports in a single assembly.
Energy-efficient: Consumes ≤ 1.5 W per end, reducing heat and OPEX.
Reliable diagnostics: DOM provides real-time link monitoring.
Wide compatibility: Tested with major network vendors for easy integration.

Length Options

Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft), 20 m (66 ft), 30 m (98 ft)

Custom lengths available:
50 m (164 ft), 75 m (246 ft), 100 m (328 ft)

More Details

Quality Certifications

Do you have any question about the 40G NSComm QSFP+ to 4x10G SFP+ Active Optical Cable?

Please Chat with us now!

or leave us an message on sales@network-switch.com

Warranty

100% Low Price Guarantee

Network-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.

Free Technical Support

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee

You can contact our customer service team to exchange or return any product that you bought from us.

Standard Warranty Policy

Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year

The Support Contacts

If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

40G QSFP+ AOC Cables

NSComm 40G QSFP+ to 4x10G SFP+ Active Optical Cable, OM3 Multimode, up to 30m

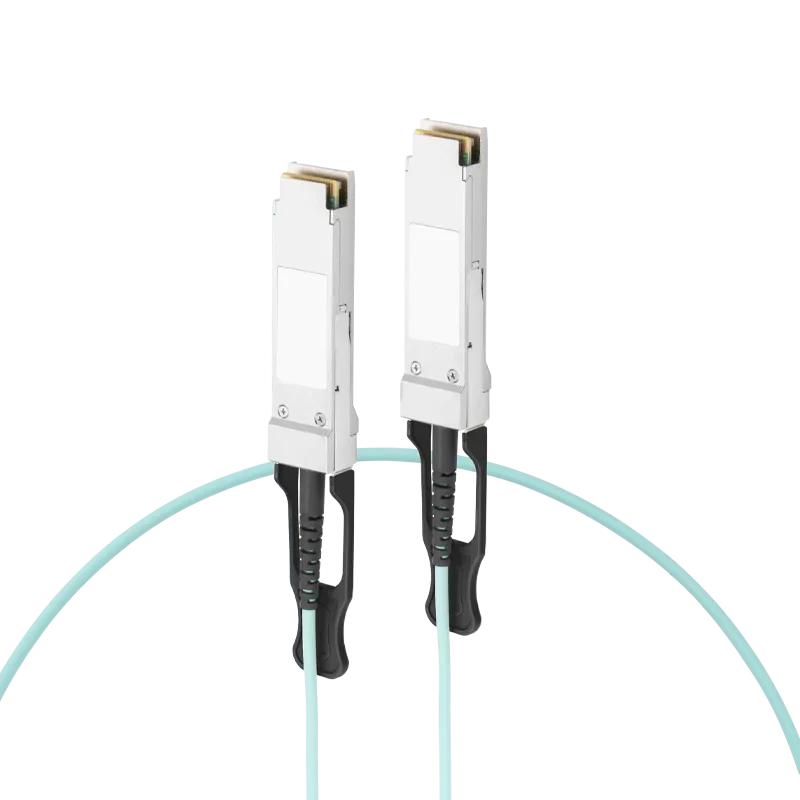

NSComm 40G QSFP+ to QSFP+ Active Optical Cable, OM3 Multimode, up to 30m
